Stainless Steel Pipe Fittings Food Grade 316L ISO9001

Wenzhou Shangle Steel Co., Ltd.
Contact Now

Stainless Steel Pipe Fittings Food Grade 316L ISO9001

Brand Name : Shangle

Model Number : stainless steel pipe fittings

Certification : ISO9001

Place of Origin : CHINA

MOQ : MOQ500kg

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 9999

Delivery Time : 7-15 working days after receiving payment

Packaging Details : In wooded cases or pallets,or as for clients requirement

Port : Ningbo

Size : 1/8”NB To 4”NB (Socketweld & Screwed-Threaded)

Type : Screwed-Threaded Fittings

Package : Seaworthy Standard Package

Price Terms : FOB,CIF,CFR,EXW

Shape : Equal

Connection : Threaded, Socket Weld, Butt Weld

Degree : 45°,90°,180°

Contact Type : Thread(NPT/BSP/BSPT and so on)

Delivery Term : FOB, CNF, CIF, FCA etc.

Grade : Sanitary

Length : as customized

Others : DIN ISO standard

Pipe Fittings : Yes

Pressure Rating : Class 150, Class 3000, Class 6000

Process : Investment Casting

Size Range : 1/8

Size Ranges : 1/2

Special Function : corrosion resistance

Standard : ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97, BS3799

Steel Number : 1.4307

Technics : Rolled,Forged

Contact Now

316L Pipe Fitting Stainless Steel Pipe Food Grade

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

Stainless steel tees are pipe fittings and pipe connectors. It is used for branch pipes of main pipelines. Stainless steel tees are divided into equal and reduced diameters. All tee ends with equal diameters have the same size. Reduced diameter tees have the same size main pipe, but the branch pipe is smaller than the main pipe. The hydraulic bumping process of forming stainless steel tees in a single pass improves productivity. Increased shoulder wall thickness for both the main pipe and the stainless steel tee.

Stainless steel tee is a kind of pipe fittings used in pipe branching. When using seamless pipe to make tees, the processes usually used are hydraulic bulging and hot pressing. Hydraulic expansion of a stainless steel tee is a molding process in which the branch pipe expands by axially compensating for the metallic material. In this process, a special hydraulic press is used to inject liquid into a billet of the same diameter as the tee, and the billet is extruded by the synchronized centering motion of two horizontal side cylinders of the hydraulic press. The liquid pressure increases as the tube volume decreases. When the pressure required to expand the stainless steel tee branch pipe is reached, the metal material flows along the mold cavity under the dual action of the side cylinders and the liquid pressure in the branch pipe, thus expanding the branch pipe.

The hydraulic bulging process of the stainless steel tee can be molded in a single pass, thus increasing productivity. The wall thickness of the main pipe and the shoulder of the stainless steel tee will increase. Stainless steel tees are pipe fittings and pipe connectors. It is used for branch pipes of main pipes. Stainless steel tee is divided into equal diameter and reduced diameter. All tee ends with equal diameters have the same dimensions. Reduced diameter tees have the same size main pipe, but the branch pipe is smaller than the main pipe.

ASTM A403 WP316L Mechanical Properties:

Elongational Melting Point Yield Properties (0.2%Offset) Tensile Properties
35 % (2550 °F) 1399 °C MPa - 205, Psi - 30000 MPa - 515, Psi - 75000

ASTM A403 WP316L Chemical Composition:

Fe Mn C Si S P Cr Ni Mo
68.89 min 2.0 max 0.035 max 1.0 max 0.030 max 0.045 max 16.00 - 18.00 10.00 - 14.00 2.00 - 3.00

Stainless steel Reducer Tee Application:

  • Petrochemical Industries
  • Gas Processing Industries
  • pharmaceuticals
  • nuclear power plant
  • Oil & Gas Industries
  • Chemical Industries
  • fertilizer
  • hydroelectric power plant

Detail Images:

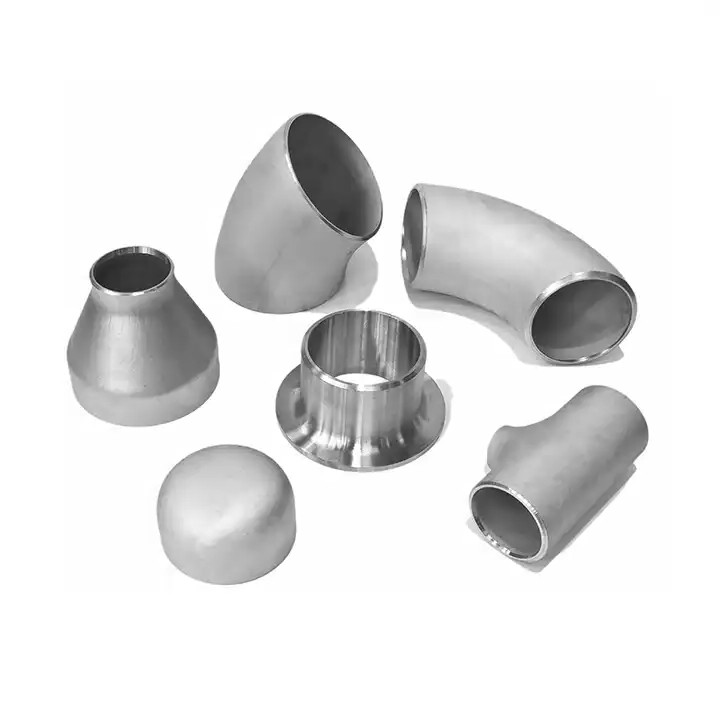

Stainless Steel Pipe Fittings Food Grade 316L ISO9001 Stainless Steel Pipe Fittings Food Grade 316L ISO9001
