SS Pipe Fitting JIS B2312 SUS304 90 Degree LR Elbow Petrochemical
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
A 90° elbow attaches readily to pipes of various materials like plastic, copper, cast iron, steel, lead, rubber etc. In other words, the 90° elbows are used to provide a joint between two pipes at right angles to each other. They are used as railing ends or corners on a level installation.
JIS B2312 standard specifies the steel and nickel chromium ferro alloy seamless pipe fittings to be fitted by butt welding,mainly to pressure service pipings 1), high pressure service pipings 2), high temperature service pipings 3), alloy steel pipings 4) stainless steel pipings 5) low temperature service pipings 6) and steel pipes for fired heaters 7) (hereafter referred to as “pipe fittings”).
Standard Dimensions Of JIS B2312 90 DEG Elbow
| NPS Of JIS B2312 Elbows | O.D. | Center to End | 90 Degree elbows Weight In KG |
| Normal Size Of Pipe | 90 Degree (A) | Kilogram/PC |
| (A) | (B) | (D) | (Long) | (Short) | (Long) | (Short) |
| 15 | ½ | 21.7 | 38.1 | - | 0.08 | 0.05 |
| 20 | ¾ | 27.2 | 38.1 | - | 0.1 | 0.07 |
| 25 | 1 | 34 | 38.1 | 25.4 | 0.15 | 0.1 |
| 32 | 1¼ | 42.7 | 47.6 | 31.8 | 0.26 | 0.17 |
| 40 | 1½ | 48.6 | 57.2 | 38.1 | 0.35 | 0.24 |
| 50 | 2 | 60.5 | 76.2 | 50.8 | 0.64 | 0.43 |
| 65 | 2½ | 76.3 | 95.3 | 63.5 | 1.12 | 0.75 |
| 80 | 3 | 89.1 | 114.3 | 76.2 | 1.58 | 1.05 |
| 90 | 3½ | 101.6 | 133.4 | 88.9 | 2.17 | 1.45 |
| 100 | 4 | 114.3 | 152.4 | 101.6 | 2.91 | 1.94 |
| 125 | 5 | 139.8 | 190.5 | 127 | 4.49 | 2.99 |
| 150 | 6 | 165.2 | 228.6 | 152.4 | 7.09 | 4.73 |
| 200 | 8 | 216.3 | 304.8 | 203.2 | 14.4 | 9.61 |
| 250 | 10 | 267.4 | 381 | 254 | 25.4 | 16.9 |
| 300 | 12 | 318.5 | 457.2 | 304.8 | 38.1 | 25.4 |
| 350 | 14 | 355.6 | 533.4 | 355.6 | 56.7 | 37.8 |
| 400 | 16 | 406.4 | 609.6 | 406.4 | 74.3 | 49.5 |
| 450 | 18 | 457.2 | 685.8 | 457.2 | 94.2 | 62.8 |
| 500 | 20 | 508 | 762 | 508 | 116 | 77.7 |
| 550 | 22 | 558.8 | 838.2 | 558.8 | 141 | 94.1 |
| 600 | 24 | 609.6 | 914.4 | 609.6 | 168 | 112 |
| 650 | 26 | 660.4 | 990.6 | 660.4 | 198 | 132 |
| 700 | 28 | 711.2 | 1066.8 | 711.2 | 230 | 154 |
| 750 | 30 | 762 | 1143 | 762 | 264 | 176 |
| 800 | 32 | 812.8 | 1219.2 | 812.8 | 301 | 201 |
| 850 | 34 | 863.6 | 1295.4 | 863.6 | 340 | 227 |
| 900 | 36 | 914.4 | 1371.6 | 914.4 | 380 | 253 |
| 950 | 38 | 965.2 | 1447.8 | 965.2 | 425 | 283 |
| 1000 | 40 | 1016 | 1524 | 1016 | 471 | 314 |
| 1050 | 42 | 1066.8 | 1600.2 | 1066.8 | 518 | 346 |
| 1100 | 44 | 1117.6 | 1676.4 | 1117.6 | 570 | 380 |
| 1150 | 46 | 1168.4 | 1752.6 | 1168.4 | 623 | 415 |
| 1200 | 48 | 1219.2 | 1828.8 | 1219.2 | 677 | 452 |
Product Tags:
|
|

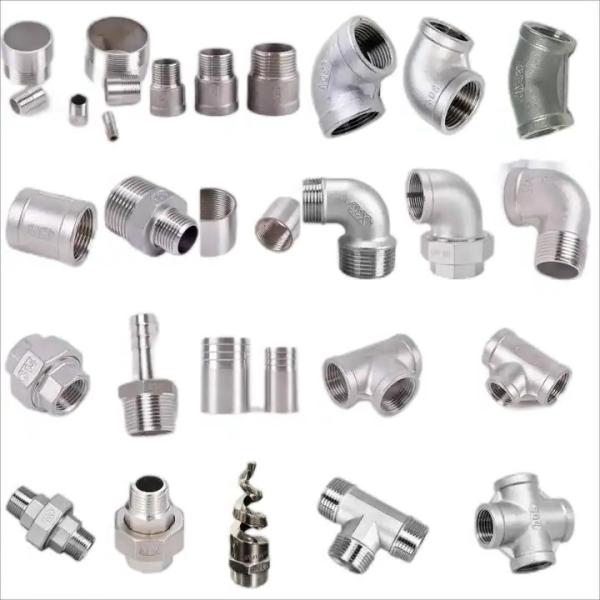

SUS304 90 Degree LR Elbow Images
|
