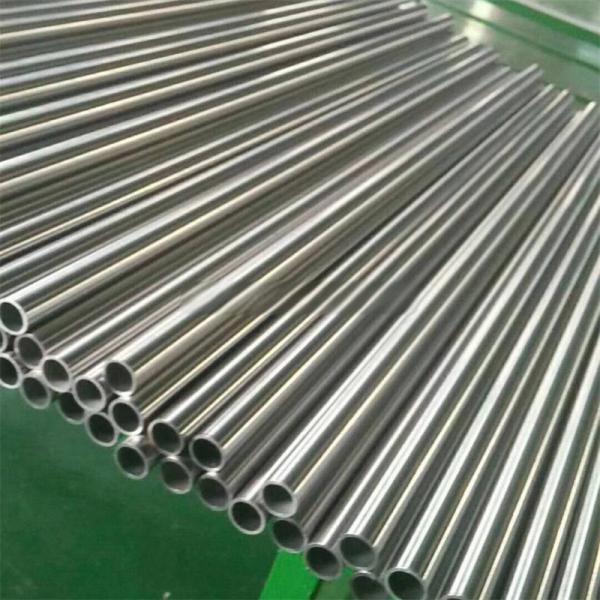

A213 TP321 UNS S32100 BRIGHT ANNEALED STAINLESS STEEL SEAMLESS TUBE

Wenzhou Shangle Steel Co., Ltd.
Contact Now

A213 TP321 UNS S32100 BRIGHT ANNEALED STAINLESS STEEL SEAMLESS TUBE

Brand Name : Shangle

Model Number : 12.7

Certification : PED,IS09001

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500TONS/30DAYS

Delivery Time : 30DAYS

Packaging Details : Woven Packing

Material : 304 ,304L 310 321 316 316L

Standard : AISI, ASTM, DIN, EN, GB

Shape : SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80

Technique : Cold Draw

Application : Oil, Petroleum/Power

Package : Woven Packing

Contact Now

A213 TP321 UNS S32100 BRIGHT ANNEALED STAINLESS STEEL SEAMLESS TUBE

Overview

TP321 is a stable stainless steel. Its main advantage is that it has excellent resistance to intergranular corrosion after exposure to the chromium carbide precipitation temperature range of 800 ° F to 1500 ° F (427 ° C to 816 ° C). The 321 stainless steel pipe can stably form chromium carbide by adding titanium.
321 stainless steel is a titanium stabilized version of 304 for specific applications within the sensitization temperature range. Its anti-sensitization ability and its high strength at high temperature make it suitable for applications where 304 will be sensitized or 304L thermal strength is insufficient. When exposed to a slightly corrosive environment, there will be no intergranular corrosion of weld corrosion. However, welding 321 must not be used in a highly oxidizing environment because it is vulnerable to "knife line" erosion. However, 321 is a better choice in the working temperature environment of more than 500 ° C, so it has its own advantages. 321 stainless steel pipe is also conducive to high-temperature use due to its good mechanical properties. 321 stainless steel has higher creep and stress fracture properties than alloy 304, especially alloy 304L can also be considered for sensitive and intergranular corrosion problems.
321 stainless steel is basically made of 304 stainless steel. The difference between them is that very little titanium is added. The real difference is their carbon content. The higher the carbon content, the greater the yield strength. 321 stainless steel has advantages in high-temperature environments due to its excellent mechanical properties. Compared to SS304, 321 stainless steel has better ductility and stress fracture resistance. In addition, 304L can also be used to resist sensitization and intergranular corrosion.

Chemical Composition

Mat.

C

Si

Mn

P

S

Cr

Ni

Ti

321 0.08 1.00 2.00 0.045 0.030 17.0/19.0 9.0/12.0 5 X C Min – 0.70 Max

Material Grade:

American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501



Size Range:

Production Outside Diameter Wall Thickness
Heat Exchanger Tube 6.00mm to 101.6mm 0.5mm to 8mm




Quality tests:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Tests:

Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing.

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

A213 TP321 UNS S32100 BRIGHT ANNEALED STAINLESS STEEL SEAMLESS TUBE
