ASTM A312 TP904L Large Outside Diameter Stainless Steel Pipe For Chemical Applications

Product Categories
Wenzhou Shangle Steel Co., Ltd.
Contact Now

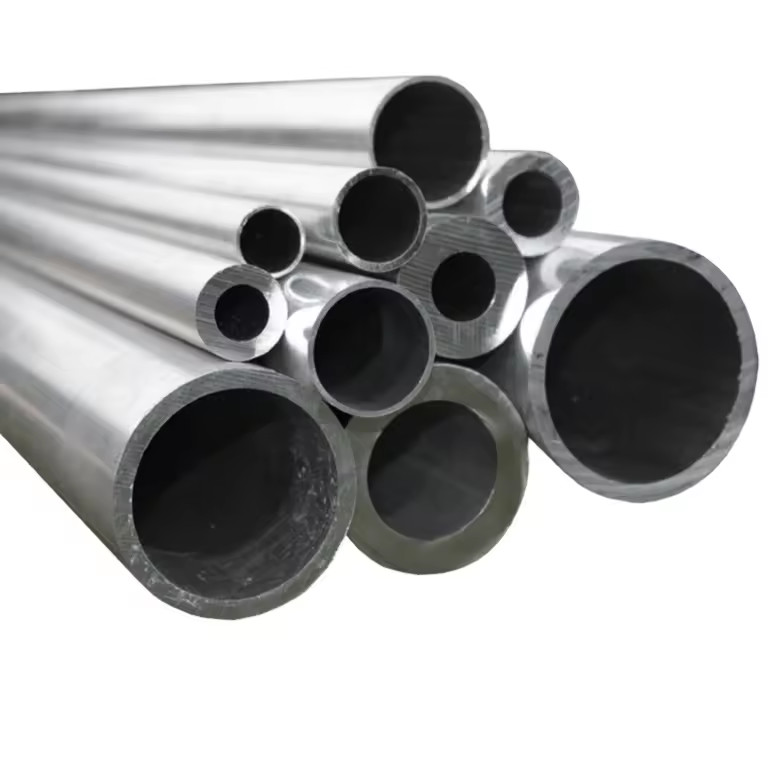

ASTM A312 TP904L Large Outside Diameter Stainless Steel Pipe For Chemical Applications

Brand Name : Shangle

Model Number : 12.7

Certification : PED,IS09001

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500TONS/30DAYS

Delivery Time : 30DAYS

Packaging Details : Woven Packing

Material : 304 ,304L 310 321 316 316L

Standard : AISI, ASTM, DIN, EN, GB

Shape : SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80

Technique : Cold Draw

Application : Oil, Petroleum/Power

Package : Woven Packing

Contact Now

ASTM A312 TP904L Large Outside Diameter Stainless Steel Pipe For Chemical Applications

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Some of the quality tests carried out by our quality department includes:

Corrosion Test Only when specifically requested by the customer
Chemical Analysis Conduct tests according to required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Fully compliant with relevant standards and ASTM A-450 and A-530 specifications, ensuring trouble-free extension, welding and use on the client side
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% hydrostatic test, check pipe leaks according to ASTM A 450 specification, the maximum pressure we can support is 20Mpa/7s.
Air Under Pressure Test Check for any signs of air leakage
Visual Inspection After passivation, each tube is subjected to a thorough visual inspection by trained personnel to detect surface defects and other defects


Supplementary Test:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing

Material No. 1.4539
EN Symbol (short) X1NiCrMoCu25-20-5
AISI/SAE —
UNS N08904
AFNOR Z 2 NCDU 25-20
B.S. —
Alloy alloy 904L
Registered work's label —
Normen VdTÜV 421 , SEW 400

Chemical composition

C
≤ %		 Si
≤ %		 Mn
≤ %		 P
≤ %		 S
≤ %		 Cr
%		 Mo
%		 Ni
%		 V
0,02 0,70 2,0 0,030 0,010 19,0-21,0 4,0-5,0 24,0-26,0
Nb Ti Al Co Cu
%		 N
≤ %		 Fe
1,20-2,00 0,15
¹ in accordance with Key to Steel 2001

Special characteristics
Temperature range: Density kg/dm³ Hardness (HB)
pressure bomb/pressure vessel
- 60°C bis 400°C		 7,9 ≤ 230
excellent stability against pitting corrosion, stress corrosion and intergranular corrosion
ASTM A312 TP904L Large Outside Diameter Stainless Steel Pipe For Chemical Applications
